ASME B18.2.2 Manufacturer wholesale Long Nuts Hex Coupling Nuts galvanized hexagon coupling nuts
FOB Reference Price Purchase quantity (Piece(s))
>= 10000 Piece(s)
US $0.10
Minimum order quantity10000 Piece(s)
PaymentT/T
-
+
All Categories
Top Selling
High Quality Chinese Manufacturer Metric and Inch Large High Strength Wheel Lug Nuts
US $0.10
>= 10000 piece
Add to Cart
- OVERVIEW
- SPECIFICATIONS
- OTHER
Product Description
  | Hex Coupling nuts(long nuts) Model:DIN6334 Property Grade:6 Material:Q195 ML08AL Surface Finish:To be confirmed Machanical Property:GB/T3098.2 |

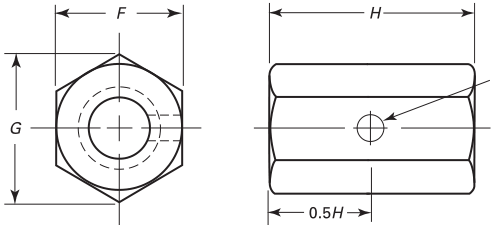

| Designation | Width Across Flats, F | Width Across Corners, G | Thickness H | Designation | Width Across Flats, F | Width Across Corners, G | Thickness H | |||||||||
| Size | Nominal | Size | Nominal | |||||||||||||
| Diameter | Min | Max | Min | Max | Min | Max | Diameter | Min | Max | Min | Max | Min | Max | |||
| #6 | 0.138 | 0.302 | 0.312 | 0.344 | 0.361 | 0.470 | 0.510 | 1-7/8 | 1.875 | 2.844 | 2.938 | 3.242 | 3.392 | 5.58 | 5.67 | |
| 3.51 | 7.67 | 7.92 | 8.74 | 9.17 | 11.94 | 12.95 | 47.625 | 72.2376 | 74.6252 | 82.3468 | 86.1568 | 141.732 | 144.018 | |||
| #8 | 0.164 | 0.302 | 0.312 | 0.344 | 0.361 | 0.595 | 0.645 | 2 | 2.000 | 3.025 | 3.125 | 3.448 | 3.608 | 5.95 | 6.04 | |
| 4.17 | 7.67 | 7.92 | 8.74 | 9.17 | 15.11 | 16.38 | 50.8 | 76.835 | 79.375 | 87.5792 | 91.6432 | 151.13 | 153.416 | |||
| #10 | 0.190 | 0.302 | 0.312 | 0.344 | 0.361 | 0.711 | 0.76 | 2-1/4 | 2.250 | 3.388 | 3.50 | 3.862 | 4.041 | 6.70 | 6.80 | |
| 4.83 | 7.67 | 7.92 | 8.74 | 9.17 | 18.06 | 19.30 | 57.15 | 86.0552 | 88.9 | 98.0948 | 102.6414 | 170.18 | 172.72 | |||
| 1/4 | 0.250 | 0.428 | 0.438 | 0.488 | 0.505 | 1.690 | 1.760 | 2-1/2 | 2.500 | 3.75 | 3.875 | 4.275 | 4.474 | 7.44 | 7.55 | |
| 6.35 | 10.8712 | 11.1252 | 12.40 | 12.827 | 42.93 | 44.70 | 63.5 | 95.25 | 98.425 | 108.585 | 113.6396 | 188.976 | 191.77 | |||
| 5/16 | 0.312 | 0.489 | 0.500 | 0.557 | 0.577 | 1.690 | 1.760 | 2-3/4 | 2.750 | 4.112 | 4.25 | 4.688 | 4.907 | 8.19 | 8.31 | |
| 7.92 | 12.4206 | 12.7 | 14.1478 | 14.6558 | 42.93 | 44.70 | 69.85 | 104.4448 | 107.95 | 119.0752 | 124.6378 | 208.026 | 211.074 | |||
| 3/8 | 0.375 | 0.551 | 0.562 | 0.628 | 0.650 | 1.690 | 1.760 | 3 | 3.000 | 4.475 | 4.625 | 5.101 | 5.34 | 8.94 | 9.06 | |
| 9.53 | 14.00 | 14.2748 | 15.9512 | 16.51 | 42.93 | 44.70 | 76.2 | 113.665 | 117.475 | 129.5654 | 135.636 | 227.076 | 230.124 | |||
| 7/16 | 0.437 | 0.607 | 0.625 | 0.692 | 0.722 | 1.690 | 1.760 | 3-1/4 | 3.250 | 4.838 | 5.000 | 5.515 | 5.773 | 9.68 | 9.81 | |
| 11.10 | 15.4178 | 15.875 | 17.5768 | 18.3388 | 42.93 | 44.70 | 82.55 | 122.8852 | 127.0 | 140.081 | 146.6342 | 245.872 | 249.174 | |||
| 1/2 | 0.500 | 0.663 | 0.688 | 0.756 | 0.794 | 1.690 | 1.760 | 3-1/2 | 3.500 | 5.200 | 5.375 | 5.928 | 6.206 | 10.43 | 10.57 | |
| 12.7 | 16.8402 | 17.4752 | 19.20 | 20.1676 | 42.93 | 44.70 | 88.9 | 132.08 | 136.525 | 150.5712 | 157.6324 | 264.922 | 268.478 | |||
| 9/16 | 0.562 | 0.782 | 0.813 | 0.891 | 0.939 | 2.067 | 2.135 | 3-3/4 | 3.750 | 5.562 | 5.75 | 6.34 | 6.639 | 11.17 | 11.32 | |
| 14.27 | 19.8628 | 20.6502 | 22.6314 | 23.8506 | 52.50 | 54.23 | 95.25 | 141.2748 | 146.05 | 161.036 | 168.6306 | 283.718 | 287.528 | |||
| 5/8 | 0.625 | 0.782 | 0.813 | 0.891 | 0.939 | 2.067 | 2.135 | 4 | 4.000 | 5.925 | 6.125 | 6.754 | 7.072 | 11.92 | 12.08 | |
| 15.875 | 19.8628 | 20.6502 | 22.6314 | 23.8506 | 52.50 | 54.23 | 101.6 | 150.495 | 155.575 | 171.5516 | 179.6288 | 302.768 | 306.832 | |||
| 3/4 | 0.750 | 0.963 | 1.00 | 1.097 | 1.155 | 2.190 | 2.260 | 4-1/4 | 4.250 | 6.288 | 6.50 | 7.168 | 7.506 | 12.67 | 12.83 | |
| 19.05 | 24.4602 | 25.4 | 27.8638 | 29.337 | 55.63 | 57.40 | 107.95 | 159.7152 | 165.1 | 182.0672 | 190.6524 | 321.818 | 325.882 | |||
| 7/8 | 0.875 | 1.212 | 1.25 | 1.382 | 1.443 | 2.440 | 2.51 | 4-1/2 | 4.500 | 6.65 | 6.875 | 7.581 | 7.939 | 13.42 | 13.58 | |
| 22.23 | 30.7848 | 31.75 | 35.1028 | 36.6522 | 61.98 | 63.75 | 114.3 | 168.91 | 174.625 | 192.5574 | 201.6506 | 340.868 | 344.932 | |||
| 1 | 1.000 | 1.325 | 1.375 | 1.511 | 1.588 | 2.690 | 2.760 | 4-3/4 | 4.750 | 7.012 | 7.25 | 7.994 | 8.372 | 14.16 | 14.34 | |
| 25.40 | 33.655 | 34.925 | 38.3794 | 40.3352 | 68.33 | 70.10 | 120.65 | 178.1048 | 184.15 | 203.0476 | 212.6488 | 359.664 | 364.236 | |||
| 1-1/8 | 1.125 | 1.45 | 1.50 | 1.653 | 1.732 | 2.94 | 3.01 | 5 | 5.000 | 7.375 | 7.625 | 8.408 | 8.805 | 14.91 | 15.09 | |
| 28.575 | 36.83 | 38.1 | 41.9862 | 43.9928 | 74.676 | 76.454 | 127 | 187.325 | 193.675 | 213.5632 | 223.647 | 378.714 | 383.286 | |||
| 1-1/4 | 1.25 | 1.575 | 1.625 | 1.825 | 1.876 | 2.94 | 3.01 | 5-1/4 | 5.250 | 7.738 | 8.00 | 8.821 | 9.238 | 15.65 | 15.85 | |
| 31.75 | 40.005 | 41.275 | 46.355 | 47.6504 | 74.68 | 76.45 | 133.35 | 196.5452 | 203.2 | 224.0534 | 234.6452 | 397.51 | 402.59 | |||
| 1-1/2 | 1.500 | 1.95 | 2.00 | 2.275 | 2.309 | 3.44 | 3.51 | 5-1/2 | 5.500 | 8.100 | 8.375 | 9.234 | 9.671 | 16.40 | 16.60 | |
| 38.10 | 49.53 | 50.8 | 57.785 | 58.6486 | 87.38 | 89.15 | 139.7 | 205.74 | 212.725 | 234.5436 | 245.6434 | 416.56 | 421.64 | |||
| 1-5/8 | 1.625 | 2.481 | 2.562 | 2.828 | 2.959 | 4.83 | 4.91 | 5-3/4 | 5.750 | 8.462 | 8.75 | 9.647 | 10.104 | 17.15 | 17.35 | |
| 41.28 | 63.0174 | 65.0748 | 71.8312 | 75.1586 | 122.682 | 124.714 | 146.05 | 214.9348 | 222.25 | 245.0338 | 256.6416 | 435.61 | 440.69 | |||
| 1-3/4 | 1.750 | 2.662 | 2.75 | 3.035 | 3.175 | 5.21 | 5.29 | 6 | 6.000 | 8.825 | 9.125 | 10.06 | 10.537 | 17.89 | 18.11 | |
| 44.45 | 67.6148 | 69.85 | 77.089 | 80.645 | 132.334 | 134.366 | 152.4 | 224.155 | 231.775 | 255.524 | 267.6398 | 454.406 | 459.994 | |||
