Product Description
  | Hexagon Thin nuts Model:DIN936 Property Grade:04,05&8 Material:ML08 SWRCH35K 10B21 45# Hardness Beyond Grade 05:26-36HRC Surface Finish:To be confirmed Mechanical Property:GB/T3098.2 |

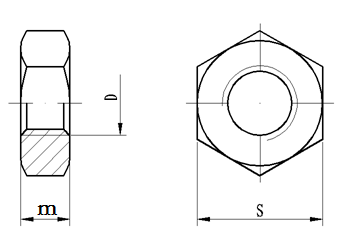

| NO. | Diameter (D) | Thread Pitch (P) | Width Across Flats (S) | Thickness(m) | NO. | Diameter (D) | Thread Pitch (P) | Width Across Flats (S) | Thickness(m) | |||||
| max | min | max | min | max | min | max | min | |||||||
| 1 | M8 | 1.0/1.25 | 13 | 12.73 | 5 | 4.7 | 10 | M27 | 1.5/2.0/3.0 | 41 | 40 | 12 | 10.9 | |
| 2 | M10 | 1.0/1.2/1.5 | 17 | 16.73 | 6 | 5.7 | 11 | M30 | 1.5/2.0/3.5 | 46 | 45 | 12 | 10.9 | |
| 3 | M12 | 1.25/1.5/1.75 | 19 | 18.67 | 7 | 6.64 | 12 | M33 | 1.5/2.0/3.5 | 50 | 49 | 14 | 12.9 | |
| 4 | M14 | 1.5/2.0 | 22 | 21.67 | 8 | 7.42 | 13 | M36 | 1.5/2.0/3.0/4.0 | 55 | 53.8 | 14 | 12.9 | |
| 5 | M16 | 1.5/2.0 | 24 | 23.67 | 8 | 7.42 | 14 | M39 | 1.5/2.0/3.0/4.0 | 60 | 58.8 | 16 | 14.9 | |
| 6 | M18 | 1.5/2.0/2.5 | 27 | 26.16 | 9 | 8.42 | 15 | M42 | 1.5/2.0/3.0/4.5 | 65 | 63.1 | 16 | 14.9 | |
| 7 | M20 | 1.5/2.0/2.5 | 30 | 29.16 | 9 | 8.42 | 16 | M45 | 1.5/2.0/3.0/4.5 | 70 | 68.1 | 18 | 16.9 | |
| 8 | M22 | 1.5/2.0/2.5 | 32 | 31 | 10 | 9.1 | 17 | M48 | 1.5/2.0/3.0/5.0 | 75 | 73.1 | 18 | 16.9 | |
| 9 | M24 | 1.5/2.0/3.0 | 36 | 35 | 10 | 9.1 | 18 | M52 | 1.5/2.0/3.0/5.0 | 80 | 78.1 | 20 | 18.7 | |
Company Information
Our Services
FAQ
Q: Are you a trading company or manufacturer ?
A: We are manufacturer.
.
Q: How long is the delivery time?
A: Generally it is within 7 days if the goods are in stock. Or it is within 45 days if the goods are not in stock. It depends on the quantity.
Q: Can you offer samples ? Is it free?
A: Yes, we can offer the sample free of charge if we have available samples and you need to pay the shipping cost only.
Q: What are your main customers?
A: We have worked with Fastenal in USA over 5 years.
What’s more,we are working with Bollhoff and Beco in Germany and Bossard in Swizterland now.
